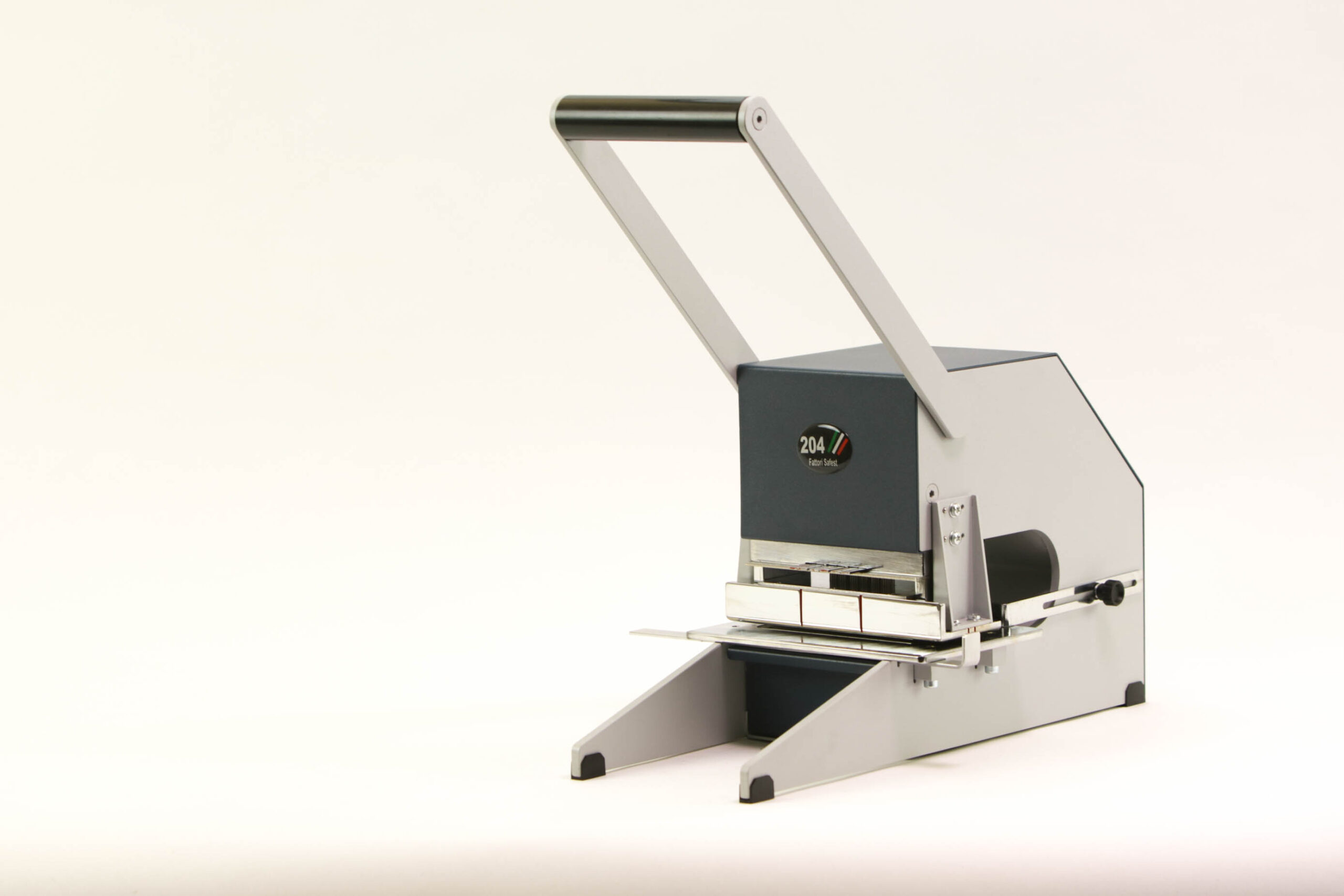

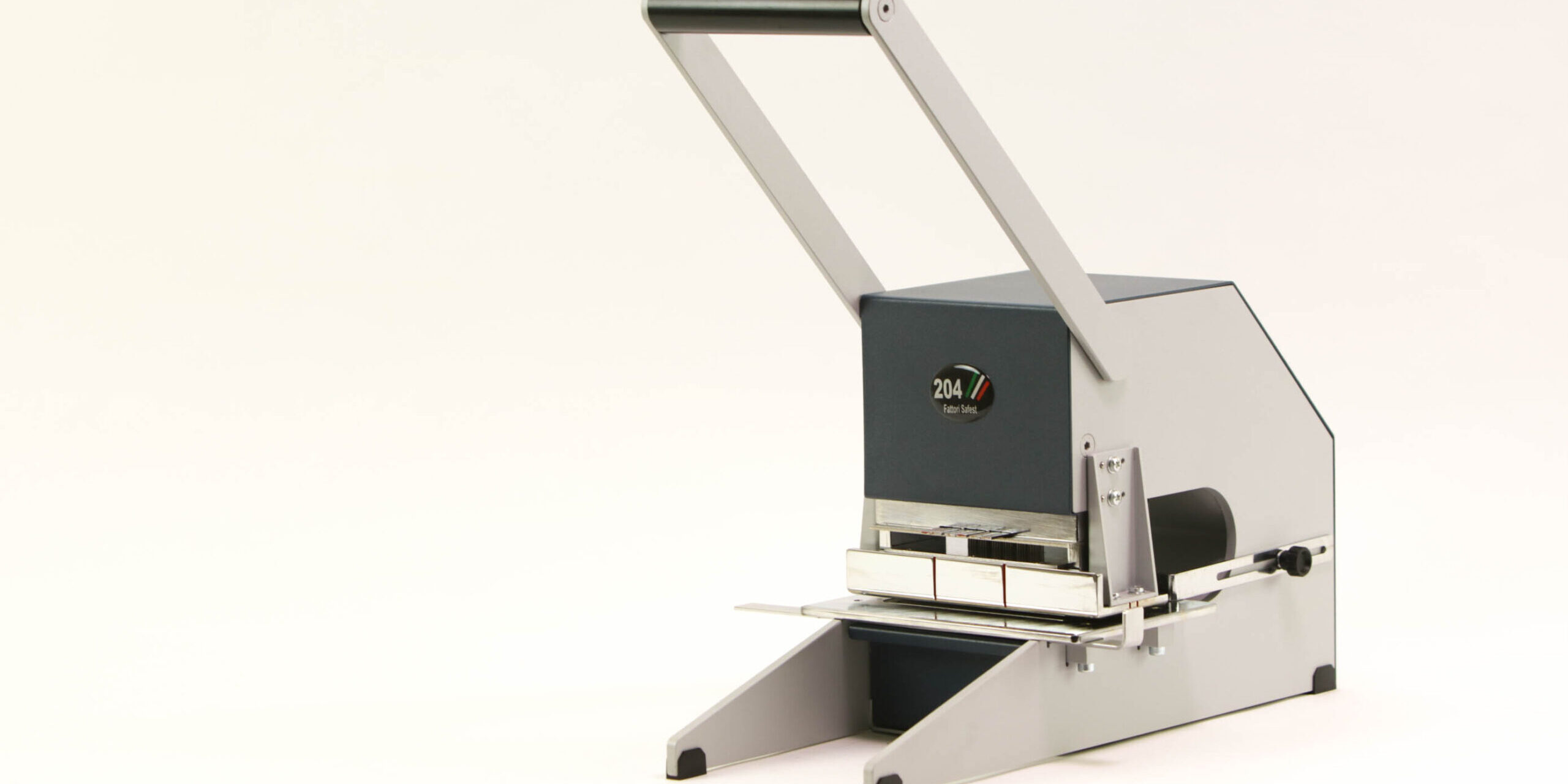

Manual perforating machine for dates
Standard Perforating Machine: 6 digits plus 2 points; on request, 8 digits plus 2 points. The characters are fitted to interchangeable plates that can be easily fed through the front side; they come as a kit containing 18 plates i.e. 36 characters.
The machine is equipped with a hands-on working table fitted with adjustable guides to easily position the documents. Specify if the paper sheet has to be punched on top or bottom. The number of sheets to be perforated in one run depends on paper substance and type style.
- Perforating capacity : sheets. 25
- Text length : 6 digits mm. 46 – 8 digits mm. 60
- Feed depth : mm. 110 *
- Machine dimensions LxWxH : cm. 18 x 40 x 42
- Weight : kg. 12
* Feed depth may be increased to 230 mm by removing the adjustable depth guide.
- Safety key.
- Style no. 7 : mm. 7 – points 4 x 5 – needle ø mm. 0,9
- Style no. 72 : mm. 9 – points 4 x 5 – needle ø mm. 0,9
